VMIV 4KW

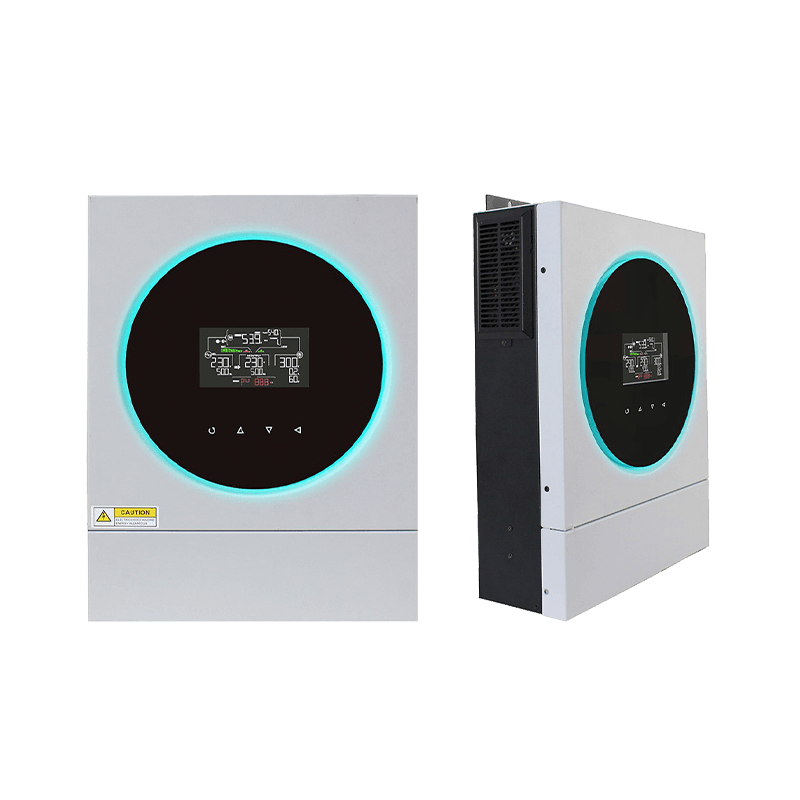

Household photovoltaic inverter 4KW

VMIV 4KW

Product Features

1. Off grid inverter, dustproof kit design
2. Maximum photovoltaic input current 27A
3. Dual output, intelligent load management
4. MPPT input voltage range 60~450V
5. 4.3 inch touch screen, RGB color bar status display
6. Built-in Wi-Fi monitoring module (Android/iOS App)
7. Off-grid inverter, support photovoltaic, mains,
battery access
8. BMS communication interface(RS485,CAN,RS232)
9. Intelligent charger design, balance function to extend battery life

Specifications

Rated power

4000VA/4000W

AC input

Voltage
230VAC
Voltage range
170-280Vac(Suitable for personal computers)90-280Vac(Suitable for household appliances)

The input

The output voltage range
230VAC±5%
Power surge
8000VA
Efficiency
93%
Conversion time
10ms(computer), 20ms(Household appliance)
Waveform
Pure sine wave

Battery

The battery voltage
24V
Float charging pressure
27V
The overcharge protection
33VDC

Pv charging & communication

Pv charging & communication
MPPT
Maximum photovoltaic array power
5000W
MPPT working voltage range
60~450VDC
Open circuit voltage, the largest photovoltaic array
500VDC
The rated voltage
320V
The largest pv input current
27A
The largest pv charging current
120A
Maximum charging current communication
120A
Maximum charging current
120A

The work environment

Working temperature
-10℃-50℃
Storage temperature
-15℃-60℃
Relative humidity
5%-95%

Physical

Size
470x305x125mm
Net weight (KG)
9
Communication interface
USB/RS232/RS485/WiFi/Dry contact

Standard

Safety regulation
CE
