Inverters

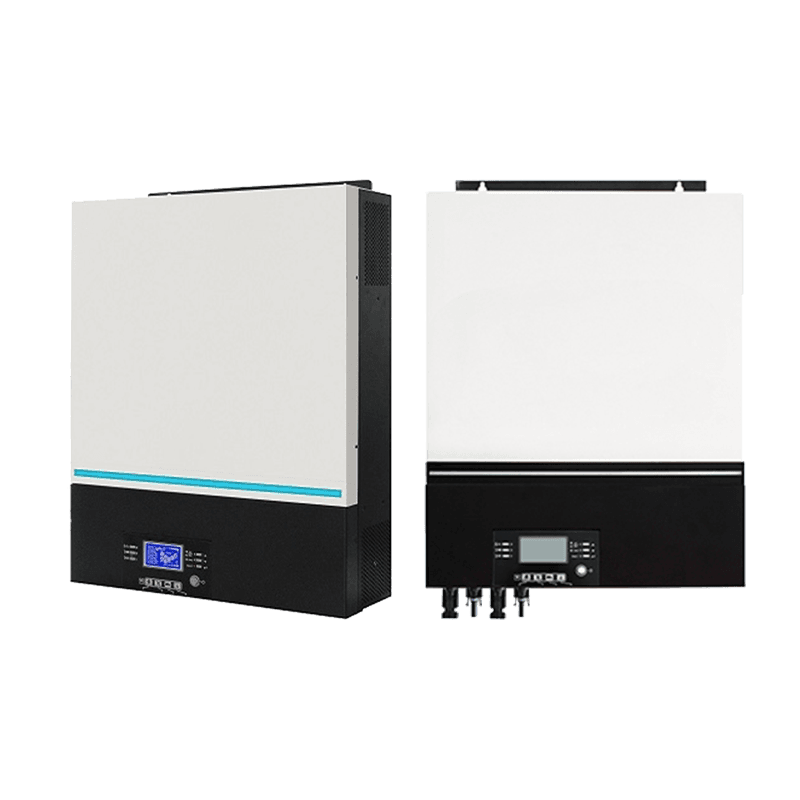

SC-MAX 8KW

Household photovoltaic inverter 8KW

SC-MAX 8KW

Product Features

1. Hybrid off-grid inverter, photovoltaic, battery access, compatible generators
2. DPS digital control technology, double transform online design, using input PFC technology, input power up to 0.99, efficient inverter topology, higher output efficiency
3. Intelligent charger design to optimize battery performance
4. Mains/photovoltaic/battery/multi-mode optimal output
5. Built-in air filter kit for harsh environments
6. The control screen can be moved, built-in Wifi module
7. Mobile remote monitoring, Android/IOS APP
8. Support BMS communication to ensure safe and reliable operation of lithium batteries
9. Supports battery cold start
10. Supports a maximum of 6 parallel machines

Specifications

Rated power

8000VA

AC input

Voltage
230VAC
Voltage range
170-280Vac(Suitable for personal computers)90-280Vac(Suitable for household appliances)
Frequency range
50 Hz/60 Hz

Pv input

Maximum photovoltaic array power
8000W
The largest photovoltaic array open-circuit voltage
500VDC
MPPT @ working voltage range
90VDC-450VDC
The rated voltage
240V
Starting voltage
80V+/-5VDC
Number of MPPT
2
Maximum input current
18A*2

Output parameters

Voltage
230VAC±5%
Frequency
93%
Maximum output power
8KW
Conversion time
10ms(modelUPS), 20ms(Household appliance)
Overload capacity
5s@≥150%load;10s@110%-150%load

Mains mode

Voltage
230Vac±5%
Frequency
50HZ
Efficiency
95%(Resistive load, full battery)

Battery

Battery voltage
48V
Charging mode
Three-stage charging
Maximum charging current
120A
Cold start voltagez
46VDC
The battery type
Lead-acid, AGM, lithium battery

Screen

Battery management function
RS232,RS485,CAN
Parallel function
Maximum parallel number 6
Communication interface
USB,RS232,WIFI,Dry contact
Protection function
Output short circuit, overload, overtemperature protection function

The work environment

Working temperature
-10℃-50℃
Storage temperature
-10℃-60℃
Relative humidity
5%-95%

Physical

Size
144x420x590mm
Net weight (KG)
19
Executive standard
CE
