Inverters

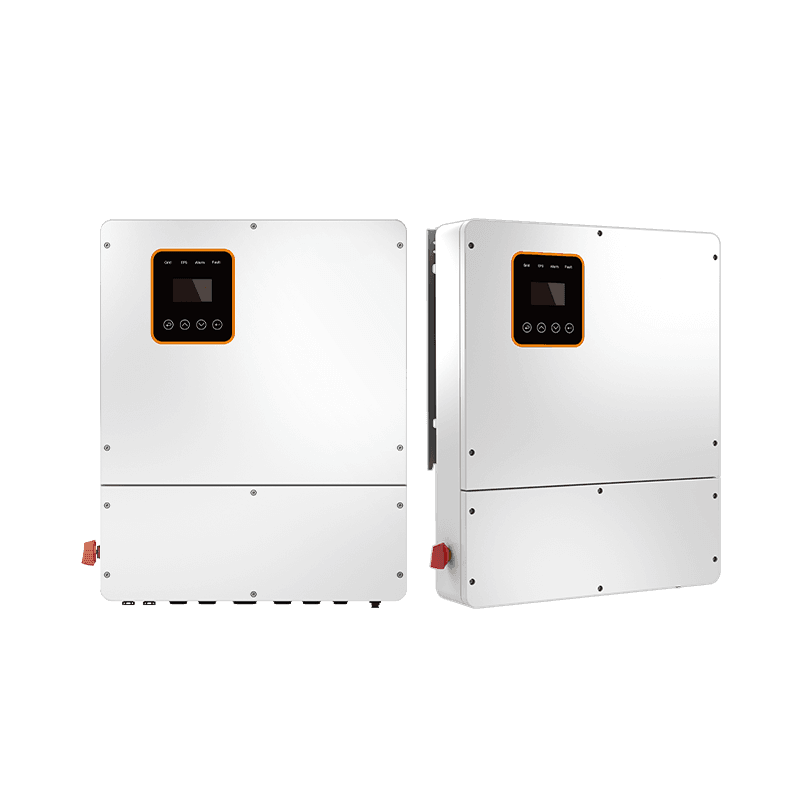

R12KH1NA

Split-phase hybrid inverter(battery high voltage)

R12KH1NA

Product Features

1. Mainstream battery automatic matching
2. UL certified, CEC listed and SUNSPEC listed
3. Support remote software upgrade
4. The maximum current for bypass load of a single inverter can reach up to 90A
5. Supporting critical load priority power supply.
6. Support 100% unbalanced load capacity

Specifications

PV string input

Max. power (kW)
15.6
Max. DC voltage (V)
500
MPPT voltage range (V)
125~500
Max.input current of single MPPT (A)
12
No. of MPPT trackers
4
No. of strings per MPPT trackers
1

AC output

Rated output power (kVA)
12
Max. apparent Power (kVA)
12
Max. output current (A)
50
Grid voltage/range (V)
240/211~264
Frequency (Hz)
50/60
PF
0.8lagging-0.8leading
THDi
<3%
AC output topology
Split phase、single phase

Battery

Battery voltage range (V)
85~400
Max. charging voltage (V)
400
Full battery voltage (V)
160
Max. charge/discharge current (A)
80/80
Battery type
lithium /Lead-acid

EPS output

Rated power (kVA)
12
Rated output voltage (V)
220-240 /110-120
Rated frequency (Hz)
50/60
Automatic switching time (ms)
<20
Overload capacity
110%,30S/120%,10S/150%,0.02S

General data

Max. efficiency
≥98.2%
CEC efficiency
≥97.2%
Ingress protection
IP65/Type
Noise emission(dB)
<25
Operation temperature (℃)
-25～60
Cooling
Natural
Relative humidity
0 ~ 95%
Operation altitude
2,000m(>2,000 Derating)
Dimensions W*D*H (mm)
530 * 200 * 660
Net weight (kg)
32
Self-consumption at night (W)
<20

Display and communication

Display
LCD
Interface:RS485/Wifi/4G/CAN
Yes/Opt/Opt/Yes
Safety standard
UL1741SA all options, UL1699B, CSA 22.2
EMC
FCC Part 15, Class B
