Batteries

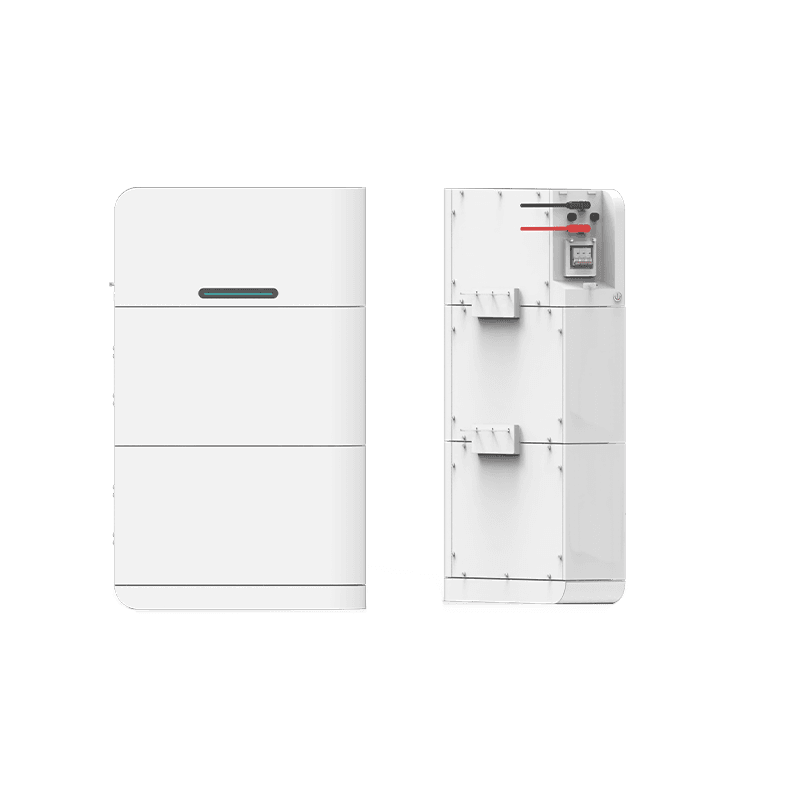

SS-5HVS5

high voltage

SS-5HVS5

Specifications

Electrical Characteristics

Rated voltage
480
Cell combination
30SIP * 5S
Rated capacity
50
Energy storage
24
Cycle life
6000 cycles @80% DOD, 0.5C
Charging voltage
525

Charge, discharge standards

Charging voltage
525
Maximum charging current
50
Maximum discharging current
50
Discharge cut-off voltage
405
Charge cut-off voltage
540
Charge temperature
0°C to 55°C

Environment

Charge temperature
0°C to 55°C
Discharge temperature
-20°C to 55°C
Storage temperature
-40°C to 50°C @ 60±25%
IP grade
IP65

machine

IP grade
IP65
Cathode material
LiFePO4
Housing material
metal
Chassis mode
Vertical stacking
Product dimensions
680 * 185 * 2205
Package dimensions
780 * 295 * 450 * 6
Net weight
14 + 49 * 5
Gross weight
21 + 53 * 5
Protocol
CANBus / RS485 / RS232

communication

Protocol
CANBus / RS485 / RS232
Monitoring
Bluetooth / WLAN Optional
Battery
UN38.3, MSDS, IEC62619, CE, UL1973

certificate

Battery
UN38.3, MSDS, IEC62619, CE, UL1973
