Batteries

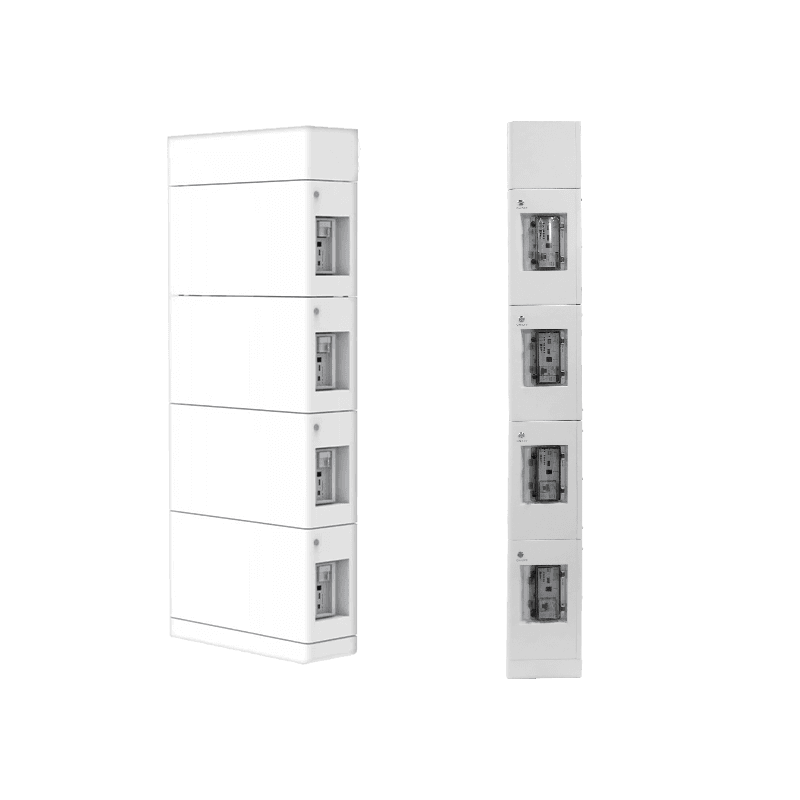

SS-51LVP4

Three-dimensional low voltage

SS-51LVP4

Specifications

Electrical Characteristics

Rated voltage
51.2
Energy storage
20.48
Cycle life
6000 cycles @80% DOD, 0.5C
Charging voltage
56

Charge, discharge standards

Charging voltage
56
Maximum charging current
100
Maximum discharging current
100
Discharge cut-off voltage
43.2
Charge cut-off voltage
58.4
Charge temperature
0°C to 55°C

Environment

Charge temperature
0°C to 55°C
Discharge temperature
-20°C to 55°C
Storage temperature
-40°C to 50°C@60±25%
IP grade
IP65

machine

IP grade
IP65
Chassis mode
Vertical stacking
Product dimensions
640 * 205 * 1581
Package dimensions
760 * 335 * 450* 4705 * 395 * 240 * 1
Net weight
14 + 484
Gross weight
21 + 534
Protocol
CANBus / RS485 / RS232

communication

Protocol
CANBus / RS485 / RS232
Monitoring
Bluetooth / WLAN Optional
Battery
UN38.3, MSDS, IEC62619, CE, UL1973

certificate

Battery
UN38.3, MSDS, IEC62619, CE, UL1973
