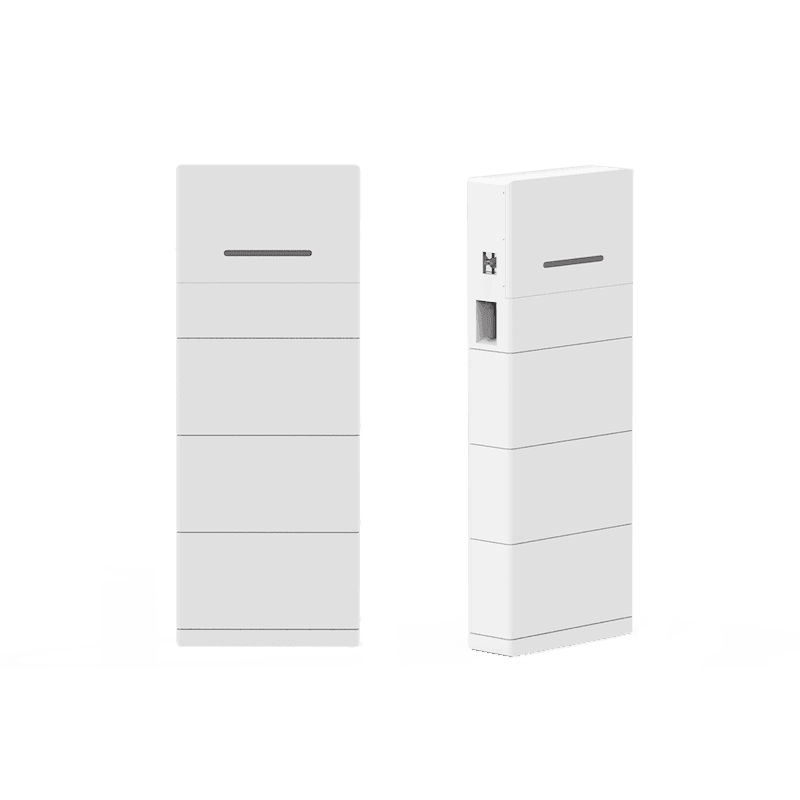

ESS6-5LV2

ZM-ESS6-5LV1/LV2/LV3

ESS6-5LV2

Specifications

PV specifications

Maximum PV input power
11000W
Nominal DC voltage/Voc
360VDC/600VDC
Start-up/minimum operating voltage
50VDC/40VDC
MPPT/Number of strings
2,1
Maximum PV input/short-circuit current
16A/20A

Input/Output (AC)

The maximum AC input power from the grid
11000VA
Rated/maximum AC output power
6000W/6000VA
Rated AC output current (at 230V)
26.1A
Maximum AC output AC
27.3A
Rated AC voltage
220V/230V/240V
AC voltage range
154V-276V
Rated grid frequency
50HZ/60HZ
Grid frequency range
45~55Hz/ 55~65Hz
Harmonics (THD)
<3%
The power factor at the rated power
>0.99
Adjustable power factor
adj.0.8.overexcited/leading to 0.8 underexcited/lagging
Mains type
Single-phase
The rated power of the standby load
6000W
Frequency range in off-grid mode
50Hz/60Hz(±0.5%)

Battery data

Rated voltage (Vdc)
51.2
Cell combination
16SIP*3
Rated Capacity(Ah)
300
Energy Storage (KWH)
15.36
Number of cycles
6000 cycles @80% DOD, 0.5C
Charging voltage
57.6V
Maximum Charge and Discharge Current (A)
100
Discharge cut-off voltage (VDC)
43.2
Charge cut-off voltage (VDC)
58.4

Environment

Charge temperature
0°C to 55°C@60±25% relative humidity
Discharge temperature
-20°C to 55°C@60±25% relative humidity
Storage temperature
-20°C to 55°C@60±25% relative humidity

Machine parts

IP grade
IP65
Cathode material
LiFePO4
Housing material
Metal
Chassis style
All-in-one stacking
Product dimensions (Height*Width*Depth mm)
640*205*1692
Packing dimensions (Height*Width*Depth mm)
760*725*345+760*335*450*3
Net weight
25+85*3
Gross weight
89+92*3

Communication

Agreement
RS485/RS232/WLAN Optional

Certificate

Inverter
UN38.3, MSDS, EN, IEC, NRS, G99
Battery
UN38.3, MSDS, IEC62619, CE, UL1973
